3V 60MA 3014 LED Chip Light 3000k 0.2W For Backlight Car Screen light

Product Categories
Phoenix (suzhou) electronic Co.,ltd
Contact Now

3V 60MA 3014 LED Chip Light 3000k 0.2W For Backlight Car Screen light

Brand Name : PHOENIX

Model Number : 3014

Certification : LM80 CE ROHS

Place of Origin : SUZHOU

MOQ : 4000PCS

Price : Negotiation

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 800KK PER MONTH

Delivery Time : 7-10 DAYS

Packaging Details : 4000PCS /ROLL

Name : SMD LED 3014

Application : Car Interior decorative lamp

nput Voltage(V) : 3V

Luminous Flux(lm) : 24-26lm

Power : 60MA

CCT : 6000-6500K

Warranty(Year) : 2 years

Working Time (hours) : 20000

Operating Temperature(℃) : -40-85

Viewing Angle(°) : 120

Contact Now

Application:
What are the numbers on LED SMD?
The numbers after the SMD simply refer to the physical size of the LED Chip. Take SMD 3528 for example, they are 3.5mm wide and 2.8mm long. Note that size is not proportional to output or performance, and it is not the only difference between LED chip types.
3V 60MA 0.2W 3014 26-28LM white light PCT SMD LED CHIP For Car light

Quick details:

Input Voltage(V): 3V
Warranty(Year): 2-Year
Type: Smd Led Chip 3014
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 150lm/w
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: 6000-6500K
Power: 0.2W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 70
Packing bag: 220*240nm
Place of Origin: Suzhou ,jiangsu
Application: car backlight
Package Type: Suface Mount Package
Forward Current: 60MA
Size: 3.0*1.4*0.65mm
Packing: 4000 Pcs/Roll


Product specification:

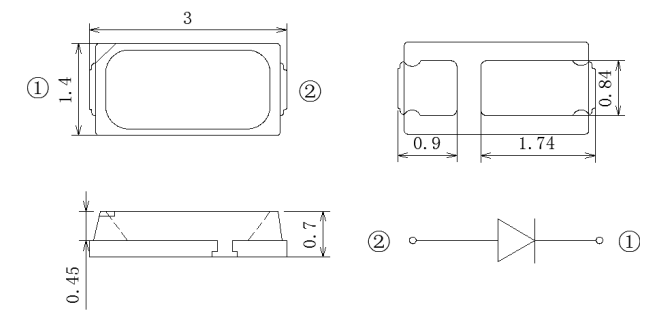

Package Structure

3V 60MA 3014 LED Chip Light 3000k 0.2W For Backlight Car Screen light

Absolute Maximum Ratings

Parameter Symbol Test condition Min Typ Max Unit
Forward Voltage VF IF=60mA 2.7 　- 3.3 V
Luminous Flux ф IF=60mA 24 　- 26 LM
Color Temperature CCT IF=60mA 2500 -　 6500 K
Reverse current VR VR=7V 0 μA
Color Rending Index Ra IF=60mA 80 -　
View Angle 2θ1/2 IF=60mA 120 deg

Typical Electro-Optical characteristics curves:

3V 60MA 3014 LED Chip Light 3000k 0.2W For Backlight Car Screen light

LED Reliability Test List

Test Item Test Conditions Standard Qty (Pcs)
Life Test 25℃,1000Hrs@60mA / 20
High Temperature 85℃,1000Hrs@60mA / 20
Low Temperature -40℃,1000Hrs@60mA / 20
High Humidity Heat

85℃,85%RH,

1000Hrs@60mA

 / 20
Low Temperature Storage -40℃,1000Hrs

JEITA ED-4701

200 202

 20
High Temperature Storage 100℃,1000Hrs

JEITA ED-4701

200 201

 20
Temperature Cycle (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)

JEITA ED-4701

100 105

 20
Thermal Shock -40'C(15mins) --100'C(15mins),changing time <5mins ,300C MIL-STD-202G 20
Pulse Life Test Tp=1ms,DC=0.1,D=Tp/T @ 3×60mA / 20
ESD Test(HBM) 2000V,200V/Step, Forward & Reverse Test both 3times

AEC

(Q101-001)

 20
Soldering Resistance

260±5℃,10S,3times

Pre-treatment 30℃,70%RH

JEITA ED-4701

300 302

 20
Reflow IV Decay

260±5℃,10S,1time

Pre-treatment 30℃,70%RH,168Hrs

 / 20


Production Process:

3V 60MA 3014 LED Chip Light 3000k 0.2W For Backlight Car Screen light
